Conquest CXAX Air-to-Water Heat Pump

Cooling capacity: 40 - 165 kW

Heating capacity: 40 - 165 kW

pictospictospictospictospictospictospictos
  • Compact design: reduced footprint and low-profile design
  • Reversible operation: cooling or heating
  • Optimized for high seasonal efficiency
  • Lower sound levels with no compromise on efficiency
  • Wide operating map: down to -15°C ambient air and up to +60°C leaving hot water temperature
  • Single and/or dual circuit

The best value chiller

Comfort, efficiency and economy are primary concerns when selecting HVAC equipment for your building. Trane Conquest chillers combine high performance and proven reliability in a compact and affordable design, delivering maximum value.

CXAX can heat or cool down your building all year round, whether the outdoor air temperature is -15°C or +46°C. Units can also deliver up to 60°C hot water temperature.

Low noise – with no compromise on efficiency

Operating noise can be a significant disturbance in sensitive building environments. Most manufacturers oversize their chillers in order to reduce sound power levels. Trane’s Conquest range has been designed to deliver lower noise, without reducing efficiency or affecting the footprint. Low Noise (LN) models achieve an impressive 47 dB(A) sound pressure level (@10m in free field).

Smart and simple

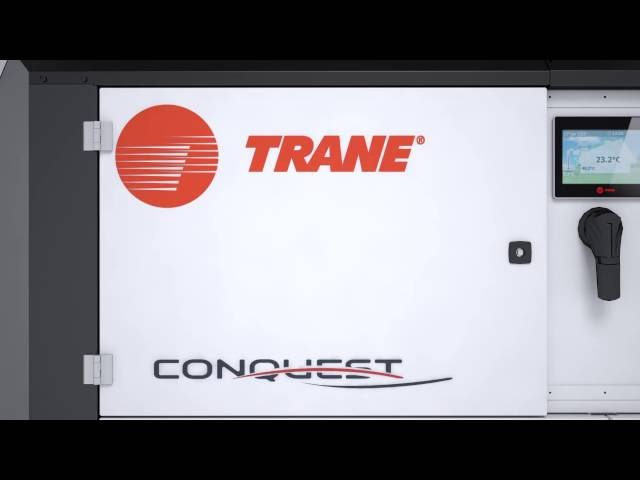

Operation is easy thanks to the integrated Trane controller, LCD interface and the optional Deluxe Display which features a very user-friendly 7” touchscreen.
The Smart Com interface provides simple connectivity with Modbus, BACnet®, LonTalk® and Trane BMS.

RANGE DESCRIPTION
  • The Trane Conquest range is available in 13 sizes. Units are available with single and/or dual circuit (on 90-190 kW range), two efficiency levels and two acoustic packages: Standard Noise, Low Noise (with no loss of efficiency).

Technical Specifications

Product name Cooling capacity Heating capacity Eurovent certification ErP Certification
Conquest CXAX Air-to-Water Heat Pump 40-165 kW 40-165 kW
Compressor Refrigerants Energy saving Operating mode Data protocols Unit type
Scroll
R454B | R410A Heat recovery Cooling only
Heat pump
Lonmark
Bacnet
Modbus
Air-to-water
