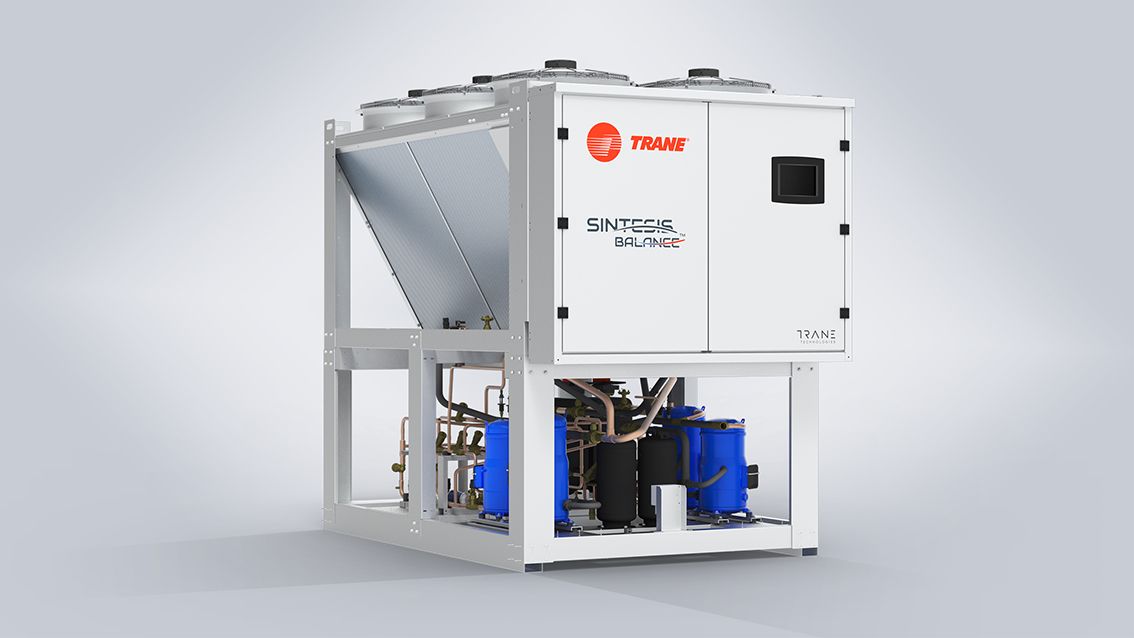

Sintesis Balance™ CMAF Multi-Pipe Unit

Cooling capacity: 270 - 650 kW

Heating capacity: 290 - 680 kW

pictospictospictospictospictospictospictospictospictospictos
  • Simultaneous cooling and heating all year around with two completely independent water circuits – one for chilled water and one for hot water
  • Proprietary Trane Adaptive Refrigerant System™: Optimized refrigerant charge in every operating mode to deliver maximum performance and highest efficiency levels
  • Unique Operating maps including high hot water temperatures for CMAF applications in regions where ambient air temperatures can reach -18°C
  • Scroll compressors with intermediate discharge valve (IDV) technology
  • Trane Adaptive Control™: Tracer® Symbio™ 800 microprocessor system optimize performances per application with the latest control technology

Innovation at its best

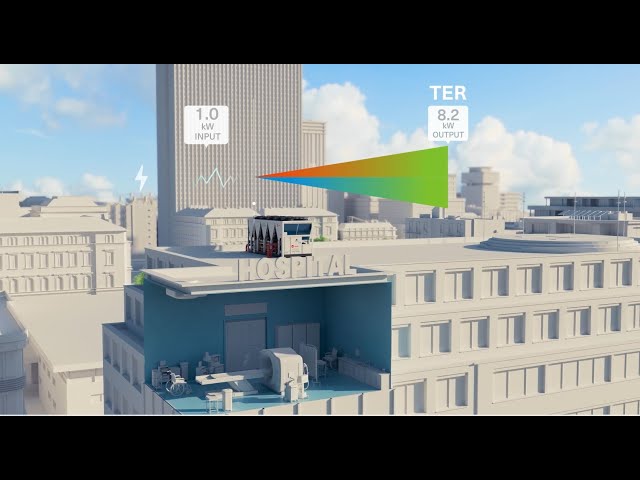

CMAF multi-pipe units can deliver chilled water, hot water or any combination of cooling and heating. The new Sintesis Balance CMAF models are substantially more efficient when compared to oil and gas boilers, up to 350% in heat pump mode. CMAF offers market-leading Total Efficiency Ratio (TER) of up to 8.2 and Coefficient of Performance (COP) of up to 3,35 – the highest levels of any air-sourced scroll multi-pipe units available on the European market.

The expanded operating maps allow CMAF to deliver hot water with temperatures of up to 68°C. The unit's heating capabilities also makes it an excellent choice for building applications in climates with ambient air temperatures as low as -18°C.

Sustainable and reliable cooling or heating. All year round.

Simultaneous heating and cooling by one single unit eliminates the need for separate boiler and chiller systems to fulfil a building's variable heating and cooling needs. This provides better use of floor space, reduced investment costs and lower total operating expenses in multifunctional facilities such as offices, hospitals, theatres and hotels - while significantly improving operational sustainability.

The fully electric-driven CMAF uses renewable and recovered energy to produce hot water and can replace existing fossil-fuel boiler and chiller systems to deliver both chilled water and hot water for the entire building, with no direct greenhouse gas emissions. This contributes to decarbonization of buildings and create better air quality in and around the building.

Trane Heating. Naturally

RANGE DESCRIPTION
  • CMAF multi-pipe units are available in 23 different heating capacities and three efficiency levels: SE: Standard Efficiency, HE: High Efficiency, SSE (Special Standard Efficiency)

  • Multiple hydraulic module packages offer Single or dual pump with or without inverter drives, Integrated chilled water buffer tank (optional), Low noise or extra low noise packages, Integrated energy meter, EC or AC fans

Technical Specifications

Product name Cooling capacity Heating capacity Eurovent certification ErP Certification
Sintesis Balance™ CMAF Multi-Pipe Unit 270-650 kW 290-680 kW N/A
Compressor Refrigerants Energy saving Operating mode Data protocols Unit type
Scroll
R454B | R410A Heat recovery
Adaptive frequency
Cooling only
Heat pump
Simultaneous cooling and heating
Multi pipes
Bacnet
Modbus
Air-to-water

Resources

Ecodesign tables
Link to the document archive
View
Installation Operation Maintenance
PDF document
Download
Product e-brochure
PDF document
Download
More product material
Link to the document archive
View
