Air-cooled Chillers
State of the art features
Efficient comfort
Customizable solutions
Process Cooling and Data Centers
Trane's air-cooled chillers cover a wide range of comfort and process cooling applications, providing solutions whatever your specific requirements. Our air-cooled chillers offer tight temperature control in virtually any application. The Sintesis Air Cooled Chiller range offers three compressor choices, six refrigerant choices and a wide variety of options from heat recovery to free cooling on a single, unique chiller platform.
Proven performance & reliability
Careful engineering, high quality, robust components and a 100 year history of proven reliability and performance is backed by Trane's powerful extended service network.
Air-cooled Chillers
15 - 50 kW
Trane Cube CGB Air-Cooled Chiller
At a Glance:
- Tandem scroll compressors
- Electronic expansion valve
- EC Axial fans as standard for all sizes
40 - 165 kW
Conquest CGAX Air-Cooled Chiller
At a Glance:
- Compact: reduced footprint and low-profile design
- High seasonal efficiency with standard EC fans, and full optimization for low GWP R454B refrigerant
- Proven reliability with microchannel condenser coils
55 - 135 kW
Flex II Air-Cooled Chiller
At a Glance:
- High part load efficiency
- Sustainable: very low refrigerant charge microchannel condenser coils
- High flexibility: ability to connect up to six Flex II units of equal or different capacities to one single FlexMaster controller
112 - 365 kW
RTDF
At a Glance:
- Air-cooled ammonia chiller for deep freezing applications
- Leaving glycol temperature between -12°C and -30°C at ambient temperatures between -10°C and +47°C
- Very high efficiency in deep freezing applications
137 - 670 kW
Sintesis Advantage CGAF Air-Cooled Chiller
At a Glance:
- Reduced footprint: ideal for retro-fit installations and new buildings
- High efficiency at full load and part load with variable volume scroll compressor technology and variable speed fans
- Reduced refrigerant charge thanks to microchannel condenser coil and optimized refrigeration circuit
165 - 240 kW
ARIES N ASCO Air-Cooled Chiller
At a Glance:
- Unmatched energy efficiency in every condition, both in Comfort and Process Cooling applications
- Wide operating map: leaving water temperature from -12° to +25°C, ideal for many applications
- All-in-one solution with optional integrated hydraulic kits and partial heat recovery
170 - 320 kW

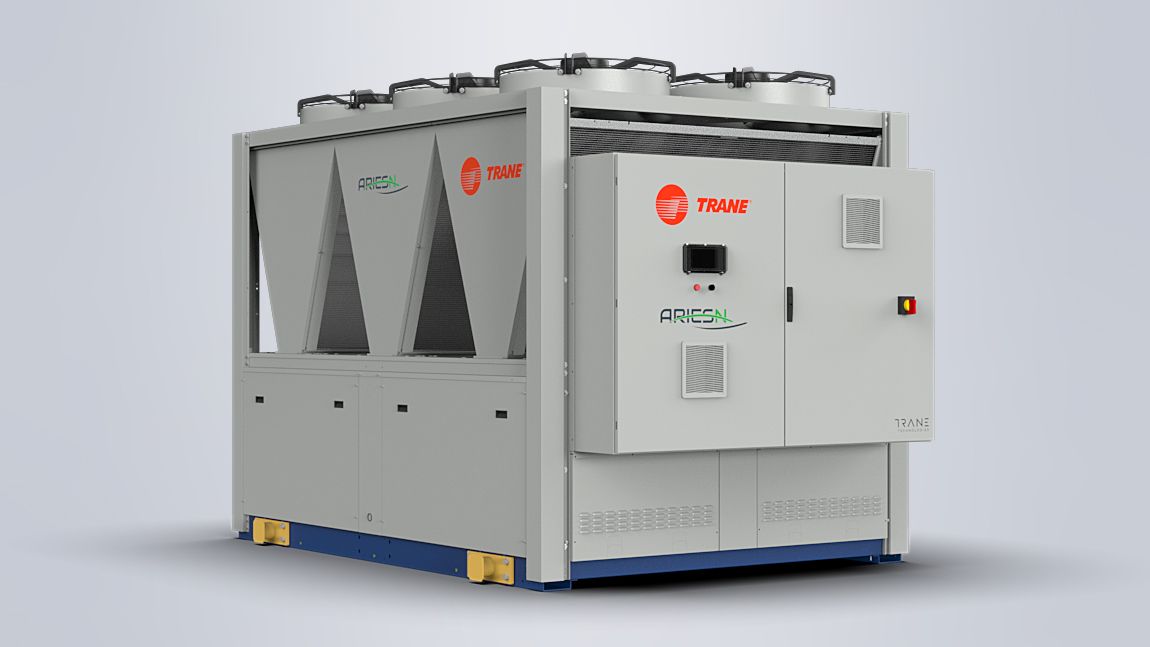

ARIES N iASN Air-Cooled Chiller
At a Glance:
- Unmatched reliability for Comfort and Process Cooling applications, even down to -10°C chilled water
- R290 pure, ultra-low GWP refrigerant: A sustainable solution with inimal environmental impact
- An extensive range of options and wide operating map ensures an ideal fit in a variety of comfortt or process cooling applications
300 - 2090 kW
Sintesis Prime RTAF Air-Cooled Chiller
At a Glance:
- Low energy consumption: high full load (EER), seasonal comfort cooling (SEER) and process cooling (SEPR-HT and SEPR-MT) efficiencies
- Ultra wide operating map both on airside and waterside
- Highly configurable product design and options to meet specific performance requirements and budget needs
- Trane design and manufactured semi-hermetic screw compressor technology. Fixed and variable speed versions, plus variable Volume Index models to reach remarkable efficiency levels.
- Trane-patented flooded evaporator CHIL (Compact - High Performance - Integrated design - Low charge) design
400 - 1600 kW
Sintesis eXcellent GVAF Air-Cooled Chiller
At a Glance:
- Best certified seasonal efficiency of the industry according to Eurovent
- New GVAF XSE and XSS series optimized for low GWP HFO refrigerant R1234
- GVAF XSE and XSS series enable wide operating map and extra compact footprint (XSS version)
450 - 775 kW
Sintesis Prime RTAF G Process Air-Cooled Chiller
At a Glance:
- Optimized high-efficiency process chiller for mild-freezing applications
- Leaving glycol temperature down to -8°C with Propylene Glycol and -12°C with Ethylene Glycol
- Over 30% reduced footprint thanks to optimized smaller size heat-exchangers
- Trane designed and manufactured semi-hermetic twin-screw compressor
- Micro-channel condenser coils
